BMS
Profile
No. | Main Parameters | Roll Forming Mill Parameters | ||
1. | Material Thickness | 0.5-0.6mm/0.6-0.8mm/1.0-1.2mm | Forming Stations | 20 Stands |
2. | Feeding Width | According to the drawing | Body Frame | H450 |
3. | Application Material | Galvanized sheet | Side Wall Thickness | Q235 t 18mm |
4. | Electrical Standard | 380V/50HZ/3PH | Shaft Diameter | 45#Steel, φ75mm |
5. | Cutter material | Cr12 with quenching | Main Motor Power | 11KW |
6. | Yield Strength | 350Mpa | Screw Bolts | Grade 8.8 |
7. | Forming Speed | ≤6m/min | Effective Width | 914.4mm |
8. | Control System | PLC Control System | Roller | Cr12 Mold steel, Heat treatment HRC58—62 |
9. | Hydraulic Motor | 7.5KW | Machine Color | Blue+Black+Orange |
10. | Testing Material | BMS Will Provide The Size of Feeding Material to Purchase that 2 Weeks Before Machine Testing |
Work Flow
Uncoiler → Feed Guide Device → Roll Forming System → Straightening Device → Cut to Length→
PLC Control System → Exit Rack
Technical specifications
1. Decoiler, passive feeding, manually tense
2. Decoiler bearing, 5T
3. Main motor power,7.5KW(with gear reducer)
4. Forming stations, 21 stands
5. Main shaft diameter, ¢50mm
6. Flying saw, 3KW
7. Shear material, Cr12with quenching
8. Material thickness, 0.4-0.6mm
9. Coil width, 147mm
10. Cut to length, 10m±2mm
11. Roller material,GCR15 steel with quenching, hardness 58-620
12. Forming speed, 15m/min
13. Shear material, Cr12with quenching
14. Profile measure up to Chinese GBT/12755-91 standard
15. Frequency:American Danfoss

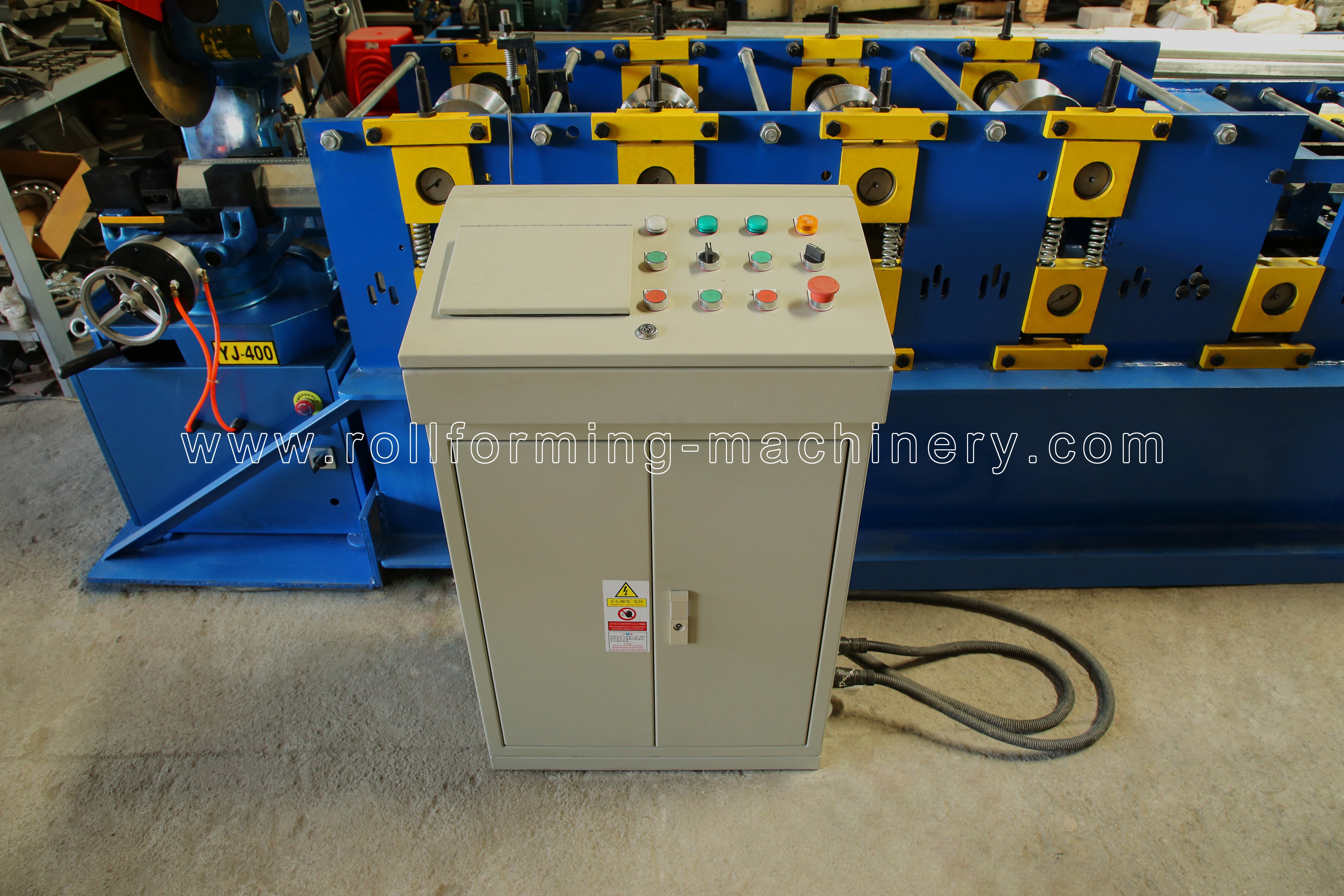

16. Computer adopt PLC control system,Mitsubishi FX-IS series
17. Computer operating board:Xinjie OP320A
Packing method:Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
Terms of Trade
1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc
